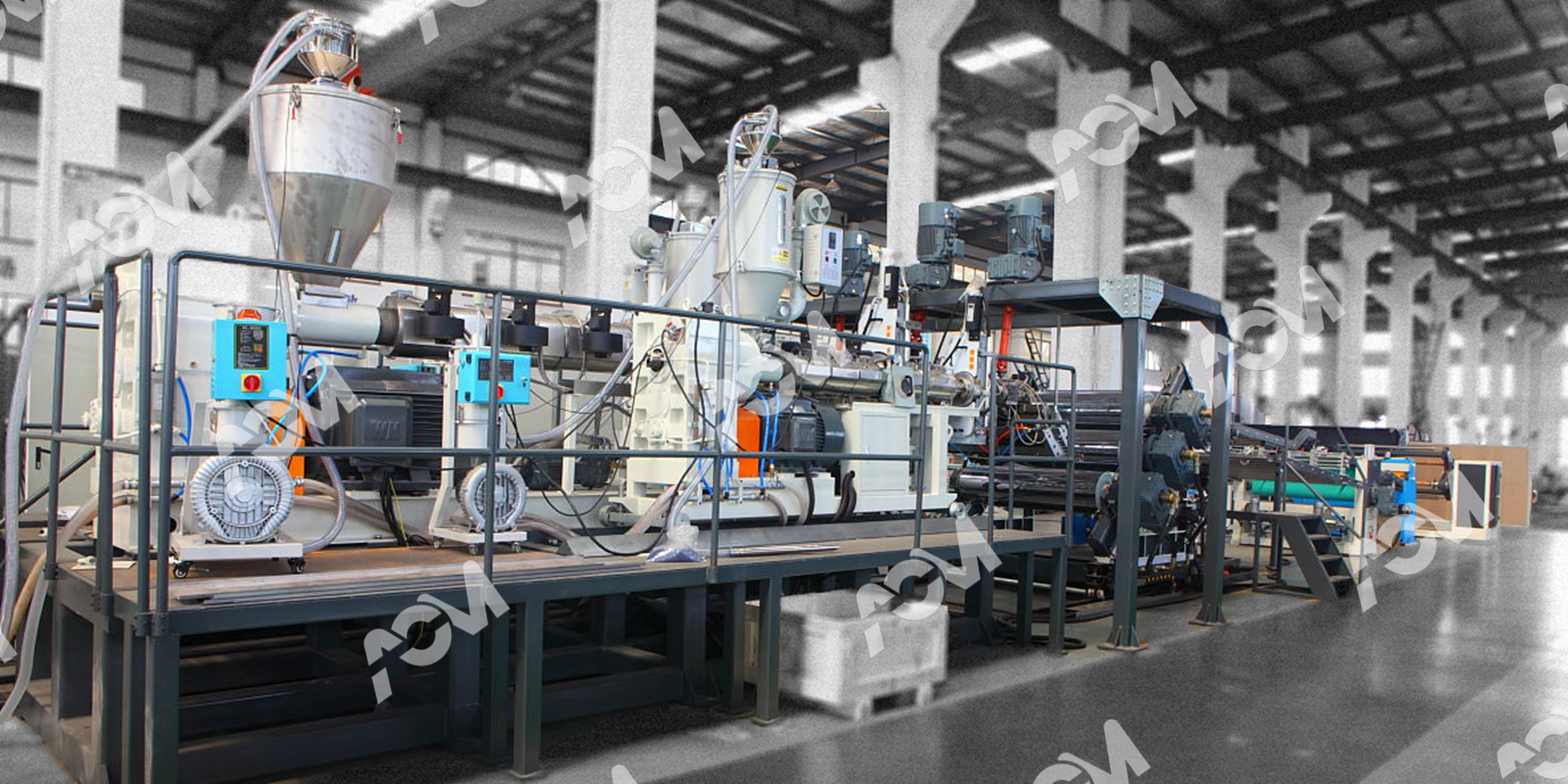

PP PS SHEET EXTRUDER

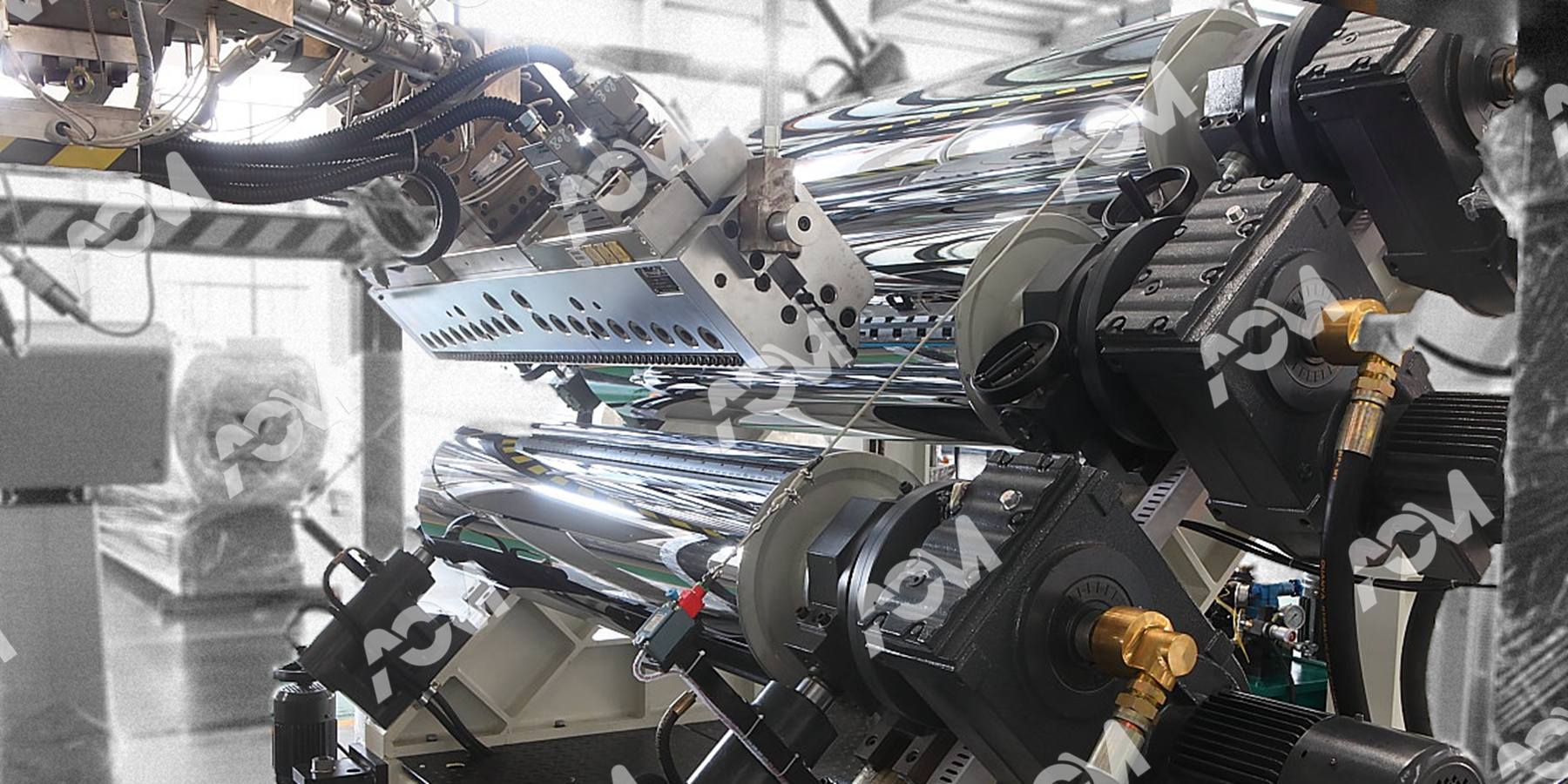

ROLLERS

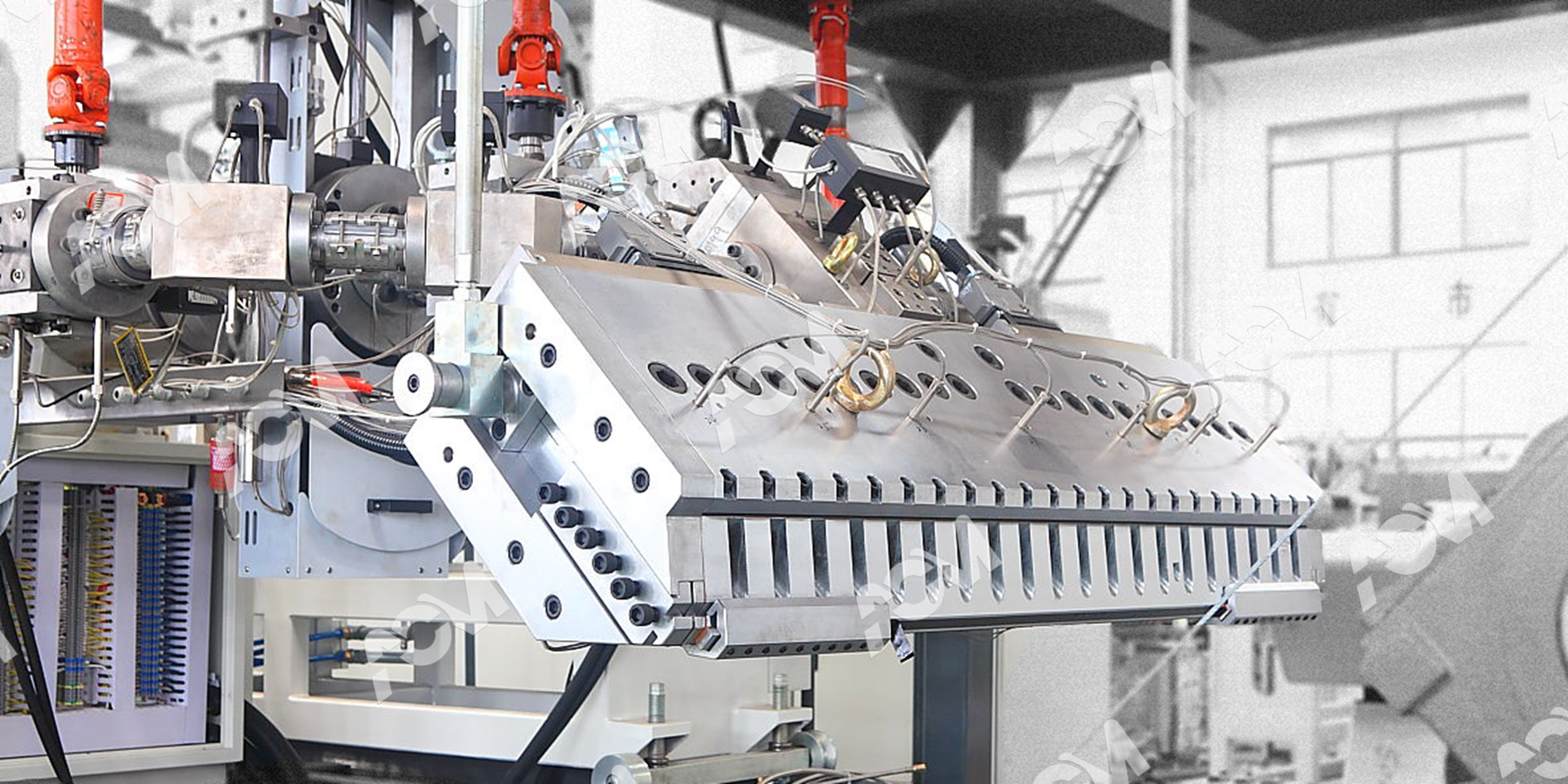

T DIE

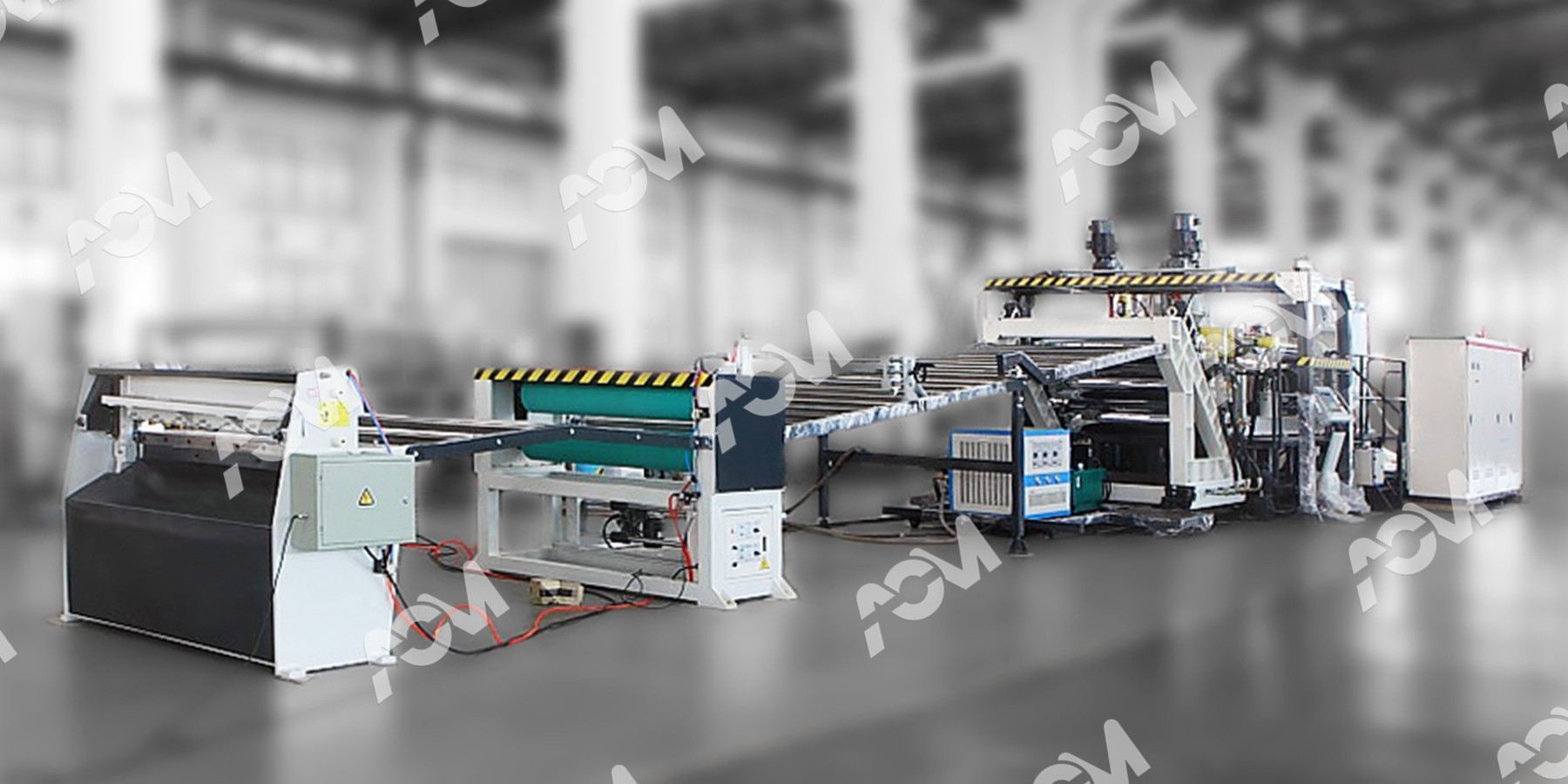

PP PS Sheet Line -3


PE PP PS SHEET EXTRUSION MACHINE

INTRODUCITON:

1.   Energy saving than the ordinary single-screw extruder.

2.   Extruder equipped with melt pump quantitative output and set up the pressure and speed closed loop auto control.

3.   PLC control system used to achieve parameter setting, data computing and back, alarm and other functions of automatic control.

4.   Compact structure, small footprint, easy maintenance.



PARAMETERS:

Model

AMB1800(150/3)

AMB1200(150/2)

AMB1000(130/2)

AMB1000(120)

Amb800(100)

Width(mm)

1500

1000

900

800

600

Thickness(mm)

0.3-2

0.3-2

0.3-2

0.3-2

0.3-2

Capacity(kgh)

800-1000

700-800

500-600

300-400

200-300

Line speed(m/min)

40

40

30

25

20

Calendar dia.(mm)

700

700

300

500

400
