SOCKET MACHINE FOR STRUCTURED WALL PIPE
Product introduction:

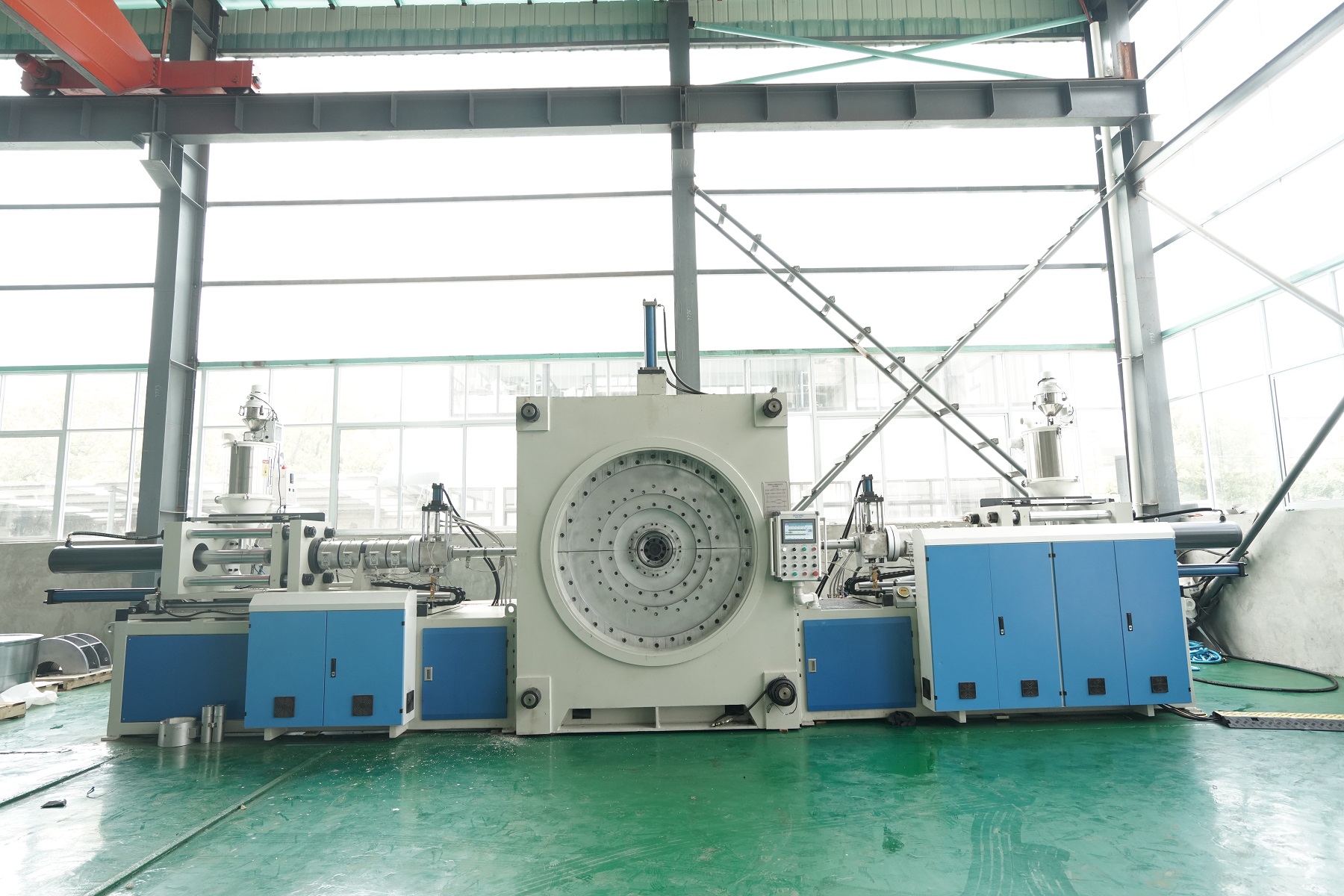

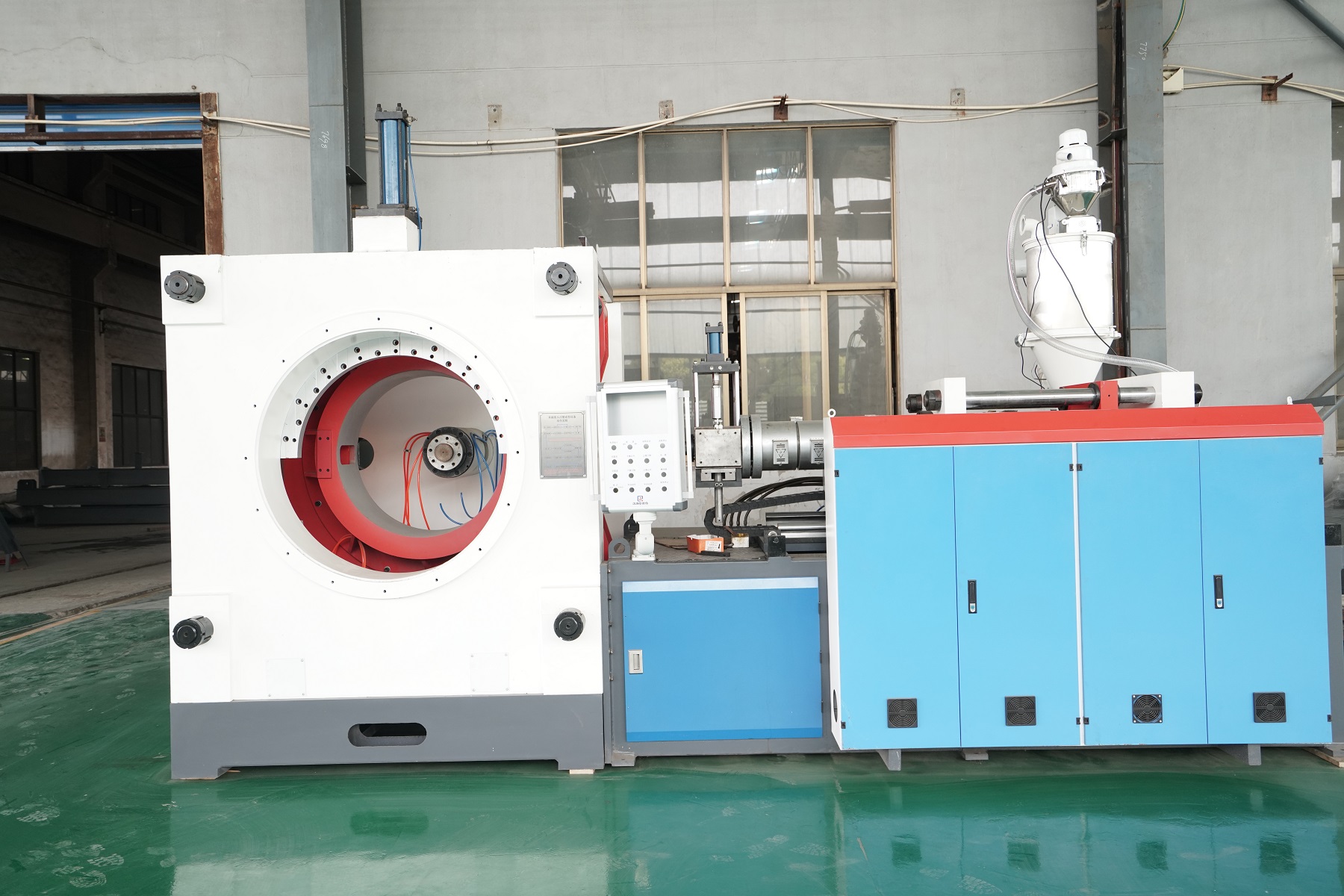

This complete set of equipment is used for socketing and belling on structured wall pipes such as PE spiral pipes, plastic steel spiral drain pipes, reinforced PE corrugated pipes. This resolves the problems caused by flexible connection, it is a more reliable connection way without any leakage, also it’s a fast connection way and easier installation, and greatly reduces installation cost. This equipment adopts extrusion + injection method, after spiral pipes offline, one or two extruders are used, equipped with suitable molds, which can quickly ensures the sockets and bellings finished well.
Specification Model Max. Injection(g) Pipe diameter(mm) Control system ACK500 5000 Φ200-500 PLC + HMI ACK800 10000 φ300-800 PLC + HMI ACK1200 20000 Φ300-1200 PLC + HMI
It is used for injection molding of socket or electric fusion joint of steel belt reinforced pipe, hollow wall pipe, inner rib pipe, carat pipe and other plastic drainage pipes. The whole system covers sizes from DN200 to DN1200. The standard model has the characteristices of compact structure, high efficiency and energy saving. It adopts the principle of high pressure and quick injection to quickly fill the cavity, which is more suitable for PE/PP adhesive with low FMI. Under the premise of ensuring the ring stiffness, the wall thickness can be effectively reduced and lighten product weight.
There are many ways to connect municipal plastic drainage pipe. The long term practical application have proced thar, no matter from manufacture or construction convenience, the high-speed and pressre injeciton-mold socket has obvious advantage over other methods.
PE and PP over-molding socketing machine is suitable for the most of drainage pipes in the market. With one high volume injection unit, only by change the molds, the machine can achieve difference sizes of socket and spigots. A machine will multi-usage can reduce investment and reduce the cost of post processing.
